GPN 290

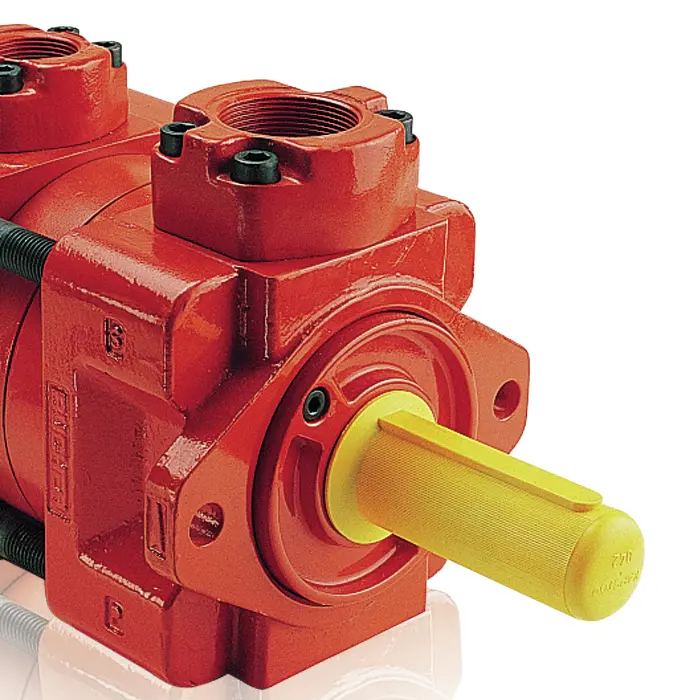

The GPN 290 shaft protection is suitable for the protection of shaft ends according to DIN EN 748-1 and DIN EN 50347. Its use also secures the feather key.


  • Shaft protection for external protection
  • Two sustainable variants made from post-consumer recyclate available
Dimensions
Sectional image with dimensions
Information
Standard color
Material
Materials and use

see table

see table

Download PDF







Choose from a material category

All products 100% Post-Consumer Recyclate Recycling blend Virgin material
Products Choose from the following articles
Application for
Dimensions
Product Outer Diameter A (G) Order no.
PU
Price / pc
Item selection
Quantity
GPN 290 / 009 PCR-PE / LDPE yellow 9 14,5 22 29000090073 1 pcs. Login
To the product
GPN 290 / 009 PCR-PE recycling blue 9 14,5 22 2900009RB61 1 pcs. Login
To the product
GPN 290 / 009 LDPE sulphur yellow 9 14,5 22 29000090000 1 pcs. Login
To the product
GPN 290 / 011 PCR-PE / LDPE yellow 11 17,5 26,3 29000110073 1 pcs. Login
To the product
GPN 290 / 011 PCR-PE recycling blue 11 17,5 26,3 2900011RB61 1 pcs. Login
To the product
GPN 290 / 011 LDPE sulphur yellow 11 17,5 26,3 29000110000 1 pcs. Login
To the product
GPN 290 / 014 PCR-PE / LDPE yellow 14 22,5 33,5 29000140073 1 pcs. Login
To the product
GPN 290 / 014 PCR-PE recycling blue 14 22,5 33,5 2900014RB61 1 pcs. Login
To the product
GPN 290 / 014 LDPE sulphur yellow 14 22,5 33,5 29000140000 1 pcs. Login
To the product
GPN 290 / 015 PCR-PE / LDPE yellow 15 25,5 31 29000150073 1 pcs. Login
To the product
GPN 290 / 015 PCR-PE recycling blue 15 25,5 31 2900015RB61 1 pcs. Login
To the product
GPN 290 / 015 LDPE sulphur yellow 15 25,5 31 29000150000 1 pcs. Login
To the product
GPN 290 / 016 PCR-PE / LDPE yellow 16 25,5 44,5 29000160073 1 pcs. Login
To the product
GPN 290 / 016 PCR-PE recycling blue 16 25,5 44,5 2900016RB61 1 pcs. Login
To the product
GPN 290 / 016 LDPE sulphur yellow 16 25,5 44,5 29000160000 1 pcs. Login
To the product
GPN 290 / 019 PCR-PE / LDPE yellow 19 30,5 45 29000190073 1 pcs. Login
To the product
GPN 290 / 019 PCR-PE recycling blue 19 30,5 45 2900019RB61 1 pcs. Login
To the product
GPN 290 / 019 LDPE sulphur yellow 19 30,5 45 29000190000 1 pcs. Login
To the product
GPN 290 / 020 PCR-PE / LDPE yellow 20 32 58 29000200073 1 pcs. Login
To the product
GPN 290 / 020 PCR-PE recycling blue 20 32 58 2900020RB61 1 pcs. Login
To the product
GPN 290 / 020 LDPE sulphur yellow 20 32 58 29000200000 1 pcs. Login
To the product
GPN 290 / 022 PCR-PE / LDPE yellow 22 35,5 56,8 29000220073 1 pcs. Login
To the product
GPN 290 / 022 PCR-PE recycling blue 22 35,5 56,8 2900022RB61 1 pcs. Login
To the product
GPN 290 / 022 LDPE sulphur yellow 22 35,5 56,8 29000220000 1 pcs. Login
To the product
GPN 290 / 024 PCR-PE / LDPE yellow 24 38,5 57 29000240073 1 pcs. Login
To the product
GPN 290 / 024 PCR-PE recycling blue 24 38,5 57 2900024RB61 1 pcs. Login
To the product
GPN 290 / 024 LDPE sulphur yellow 24 38,5 57 29000240000 1 pcs. Login
To the product
GPN 290 / 025 PCR-PE / LDPE yellow 25 40 69 29000250073 1 pcs. Login
To the product
GPN 290 / 025 PCR-PE recycling blue 25 40 69 2900025RB61 1 pcs. Login
To the product
GPN 290 / 025 LDPE sulphur yellow 25 40 69 29000250000 1 pcs. Login
To the product
GPN 290 / 028 PCR-PE / LDPE yellow 28 45 69 29000280073 1 pcs. Login
To the product
GPN 290 / 028 PCR-PE recycling blue 28 45 69 2900028RB61 1 pcs. Login
To the product
GPN 290 / 028 LDPE sulphur yellow 28 45 69 29000280000 1 pcs. Login
To the product
GPN 290 / 030 PCR-PE / LDPE yellow 30 48 91,3 29000300073 1 pcs. Login
To the product
GPN 290 / 030 PCR-PE recycling blue 30 48 91,3 2900030RB61 1 pcs. Login
To the product
GPN 290 / 030 LDPE sulphur yellow 30 48 91,3 29000300000 1 pcs. Login
To the product
GPN 290 / 032 PCR-PE / LDPE yellow 32 51 91,8 29000320073 1 pcs. Login
To the product
GPN 290 / 032 PCR-PE recycling blue 32 51 91,8 2900032RB61 1 pcs. Login
To the product
GPN 290 / 032 LDPE sulphur yellow 32 51 91,8 29000320000 1 pcs. Login
To the product
GPN 290 / 035 PCR-PE / LDPE yellow 35 56 91 29000350073 1 pcs. Login
To the product
GPN 290 / 035 PCR-PE recycling blue 35 56 91 2900035RB61 1 pcs. Login
To the product
GPN 290 / 035 LDPE sulphur yellow 35 56 91 29000350000 1 pcs. Login
To the product
GPN 290 / 038 PCR-PE / LDPE yellow 38 61 91 29000380073 1 pcs. Login
To the product
GPN 290 / 038 PCR-PE recycling blue 38 61 91 2900038RB61 1 pcs. Login
To the product
GPN 290 / 038 LDPE sulphur yellow 38 61 91 29000380000 1 pcs. Login
To the product
GPN 290 / 042 PCR-PE / LDPE yellow 42 67 125,5 29000420073 1 pcs. Login
To the product
GPN 290 / 042 PCR-PE recycling blue 42 67 125,5 2900042RB61 1 pcs. Login
To the product
GPN 290 / 042 LDPE sulphur yellow 42 67 125,5 29000420000 1 pcs. Login
To the product
GPN 290 / 045 PCR-PE / LDPE yellow 45 72 115,5 29000450073 1 pcs. Login
To the product
GPN 290 / 045 PCR-PE recycling blue 45 72 115,5 2900045RB61 1 pcs. Login
To the product
GPN 290 / 045 LDPE sulphur yellow 45 72 115,5 29000450000 1 pcs. Login
To the product
GPN 290 / 048 PCR-PE / LDPE yellow 48 77 126 29000480073 1 pcs. Login
To the product
GPN 290 / 048 PCR-PE recycling blue 48 77 126 2900048RB61 1 pcs. Login
To the product
GPN 290 / 048 LDPE sulphur yellow 48 77 126 29000480000 1 pcs. Login
To the product
GPN 290 / 055 PCR-PE / LDPE yellow 55 88 125,8 29000550073 1 pcs. Login
To the product
GPN 290 / 055 PCR-PE recycling blue 55 88 125,8 2900055RB61 1 pcs. Login
To the product
GPN 290 / 055 LDPE sulphur yellow 55 88 125,8 29000550000 1 pcs. Login
To the product
GPN 290 / 060 PCR-PE / LDPE yellow 60 96 160,5 29000600073 1 pcs. Login
To the product
GPN 290 / 060 PCR-PE recycling blue 60 96 160,5 2900060RB61 1 pcs. Login
To the product
GPN 290 / 060 LDPE sulphur yellow 60 96 160,5 29000600000 1 pcs. Login
To the product
GPN 290 / 075 PCR-PE / LDPE yellow 75 112 165 29000750073 1 pcs. Login
To the product
GPN 290 / 075 PCR-PE recycling blue 75 112 165 2900075RB61 1 pcs. Login
To the product
GPN 290 / 075 LDPE sulphur yellow 75 112 165 29000750000 1 pcs. Login
To the product
