GPN 480
GPN 480

The GPN 480 ECO grip plugs can be used as a cap or a plug and protect external threads, bolts and pipes as well as internal thread and bore holes. With the thermoformed grip plugs, material use is reduced by up to 70%. The stackable design leads to a reduction in transport and storage volume of up to 75%. The gripping surface enables extremely fast removal.


  • ECO grip plugs for internal and external protection
Dimensions

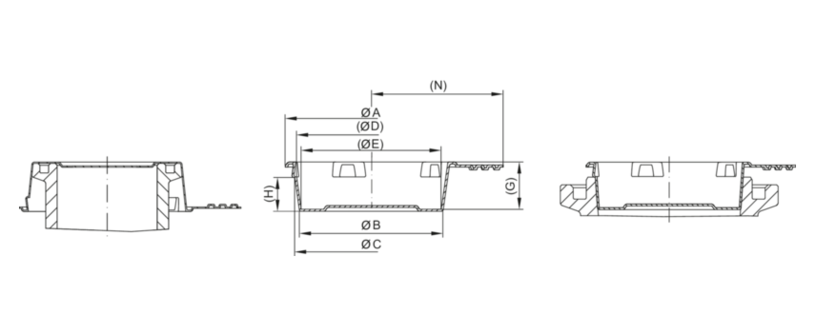

Sectional image with dimensions
Information
Standard color
Material
Materials and use

see table

see table

Download PDF

Products Choose from the following articles
Indoor application
Outdoor application
Product A B C (H) (D) (E) (G) (N) Order no.
PU
Price / pc
Item selection
Quantity
GPN 480 C 585 PS sulphur yellow 70,2 56,4 58,6 15 57,9 55,9 22,5 58 48005850000 1 pcs. Login
To the product
GPN 480 C 598 PS sulphur yellow 70,2 57,7 59,9 15 59,2 57,3 22,5 58 48005980000 1 pcs. Login
To the product
GPN 480 C 611 PS sulphur yellow 70,2 59 61,3 15 60,3 58,5 22,5 58 48006110000 1 pcs. Login
To the product
GPN 480 C 624 PS sulphur yellow 82 60,3 62,5 15 61,8 59,8 22,5 64 48006240000 1 pcs. Login
To the product
GPN 480 C 635 PS sulphur yellow 82 61,4 63,6 15 62,9 60,9 22,5 64 48006350000 1 pcs. Login
To the product
GPN 480 C 648 PS sulphur yellow 82 62,7 64,9 15 64,2 62,2 22,5 64 48064800000 1 pcs. Login
To the product
GPN 480 C 660 PS sulphur yellow 82 63,9 66,1 15 65,4 63,3 22,5 64 48066000000 1 pcs. Login
To the product
GPN 480 C 673 PS sulphur yellow 82 65,4 67,5 15 66,9 64,9 22,5 64 48067300000 1 pcs. Login
To the product
GPN 480 C 686 PS sulphur yellow 82 66,5 68,7 15 67,9 66 22,5 66 48006860000 1 pcs. Login
To the product
GPN 480 C 699 PS sulphur yellow 82 67,8 70 15 69,2 67,3 22,5 66 48006990000 1 pcs. Login
To the product
GPN 480 C 712 PS sulphur yellow 82 69,1 71,3 15 70,5 68,6 22,5 66 48007120000 1 pcs. Login
To the product
GPN 480 C 725 PS sulphur yellow 82 70,4 72,5 15 71,8 69,9 22,5 66 48007250000 1 pcs. Login
To the product
GPN 480 C 738 PS sulphur yellow 82 71,7 73,9 15 73,1 71,2 22,5 66 48007380000 1 pcs. Login
To the product
GPN 480 C 751 PS sulphur yellow 92 73 75,2 15 74,4 72,5 22,5 71 48007510000 1 pcs. Login
To the product
GPN 480 C 768 PS sulphur yellow 92 74,3 76,9 18 76,1 73,8 25,4 71 48007680000 1 pcs. Login
To the product
GPN 480 C 785 PS sulphur yellow 92 75,9 78,6 18 77,8 75,5 25,4 71 48007850000 1 pcs. Login
To the product
GPN 480 C 802 PS sulphur yellow 92 77,7 80,3 18 79,5 77,2 25,4 71 48008020000 1 pcs. Login
To the product
GPN 480 C 819 PS sulphur yellow 92 79,4 81,9 18 81,2 78,9 25,4 71 48008190000 1 pcs. Login
To the product
GPN 480 C 836 PS sulphur yellow 101 81,1 83,7 18 82,9 80,6 25,4 76 48008360000 1 pcs. Login
To the product
GPN 480 C 853 PS sulphur yellow 101 82,8 85,4 18 84,7 82,3 25,4 76 48008530000 1 pcs. Login
To the product
GPN 480 C 870 PS sulphur yellow 101 84,4 87,1 18 86,3 83,9 25,4 76 48008700000 1 pcs. Login
To the product
GPN 480 C 887 PS sulphur yellow 101 86,2 88,7 18 88 85,7 25,4 76 48008870000 1 pcs. Login
To the product
GPN 480 C 902 PS sulphur yellow 101 87,7 90,3 18 89,5 87,2 25,4 76 48009020000 1 pcs. Login
To the product
GPN 480 C 917 PS sulphur yellow 101 89,1 91,7 18 91 88,6 25,4 76 48009170000 1 pcs. Login
To the product
GPN 480 C 934 PS sulphur yellow 112 91 93,5 18 92,7 90,3 25,4 81 48009340000 1 pcs. Login
To the product
GPN 480 C 951 PS sulphur yellow 112 92,7 95,3 18 94,3 91,9 25,4 81 48009510000 1 pcs. Login
To the product
GPN 480 C 969 PS sulphur yellow 112 94 96,9 21 96,2 93,4 28,4 81 48009690000 1 pcs. Login
To the product
GPN 480 C 990 PS sulphur yellow 112 96,1 99,1 21 98,3 95,5 28,4 81 48009900000 1 pcs. Login
To the product
GPN 480 C 1007 PS sulphur yellow 112 97,6 100,8 21 100 97,1 28,4 81 48010070000 1 pcs. Login
To the product
GPN 480 C 1025 PS sulphur yellow 118 99,6 102,6 21 102,3 99,1 28,4 84 48010250000 1 pcs. Login
To the product
GPN 480 C 1046 PS sulphur yellow 118 101,6 104,6 21 104,3 101,1 28,4 84 48010460000 1 pcs. Login
To the product
GPN 480 C 1076 PS sulphur yellow 118 104,6 107,6 21 107,4 104,1 28,4 84 48010760000 1 pcs. Login
To the product
GPN 480 C 1088 PS sulphur yellow 118 105,8 108,8 21 108,5 105,3 28,4 84 48010880000 1 pcs. Login
To the product
GPN 480 C 1109 PS sulphur yellow 132 107,9 110,9 21 110,6 107,3 28,4 91 48011090000 1 pcs. Login
To the product
GPN 480 C 1129 PS sulphur yellow 132 109,7 112,9 21 112,1 109,1 28,4 91 48011290000 1 pcs. Login
To the product
GPN 480 C 1145 PS sulphur yellow 132 111,4 114,5 21 114,1 110,9 28,4 91 48011450000 1 pcs. Login
To the product
GPN 480 C 1170 PS sulphur yellow 132 113,7 117,1 24 116,2 113,2 31,3 91 48011700000 1 pcs. Login
To the product
GPN 480 C 1195 PS sulphur yellow 132 116,1 119,5 24 119 115,6 31,3 91 48011950000 1 pcs. Login
To the product
GPN 480 C 1219 PS sulphur yellow 132 118,5 121,9 24 121,1 118 31,3 91 48012190000 1 pcs. Login
To the product
GPN 480 C 1231 PS sulphur yellow 142 119,8 123,2 24 122,2 119,1 31,3 96 48012310000 1 pcs. Login
To the product
GPN 480 C 1256 PS sulphur yellow 142 122,2 125,6 24 124,8 121,6 31,3 96 48012560000 1 pcs. Login
To the product
GPN 480 C 1280 PS sulphur yellow 142 124,4 128 24 127,2 123,7 31,3 96 48012800000 1 pcs. Login
To the product
GPN 480 C 1306 PS sulphur yellow 142 127 130,5 24 130 126,4 31,3 96 48013060000 1 pcs. Login
To the product
