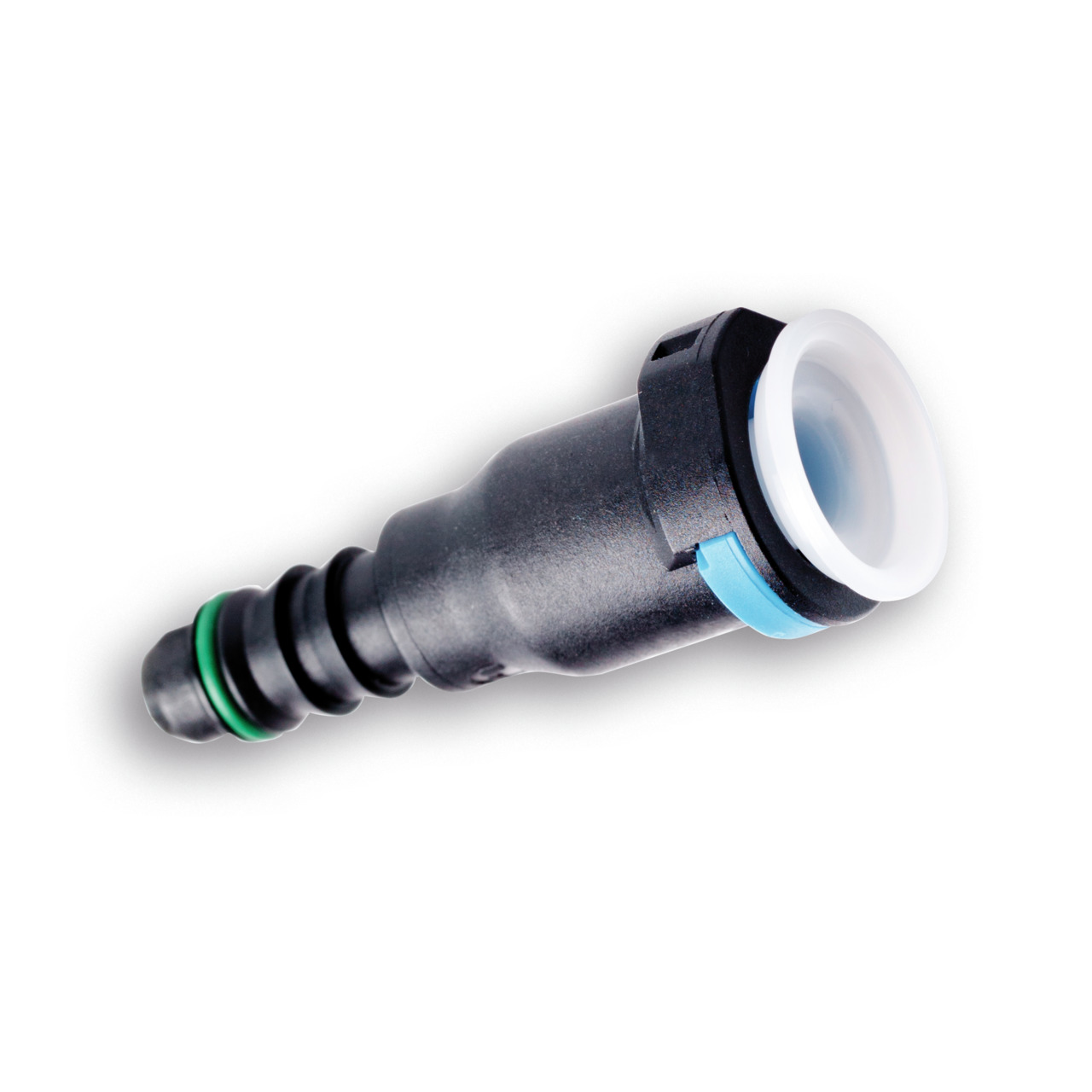

The GPN 245 Type A QC-plugs are suitable for the protection of SAE quick connector couplings, based on SAE J2044. Clamping is carried out gently and safely on the internal sealing rings of the connector. The QC-plugs are suitable for pressure testing within certain limits.
|
Applicable for SAE couplings
|
Dimensions
|
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product | NW mm | NW inch | (A) | (a) | B | (H) | (M) | Order no. |
PU
|
Price / pc
|
Item selection
|
Quantity | ||
| GPN 245 QC 8 HDPE nature | 8 | 5/16 | 26 | 22 | 7,6 | 27 | 33 | 24500080000 | 1 pcs. | Login | To the product | |||
| GPN 245 QC 10 HDPE nature | 10 | 7/16 | 23 | 18 | 9,6 | 30 | 34 | 24500100000 | 1 pcs. | Login | To the product | |||
| GPN 245 QC 12,7 HDPE nature | 12.7 | 1/2 | 28 | 23 | 12,2 | 30 | 36,5 | 24501270000 | 1 pcs. | Login | To the product | |||
| GPN 245 QC 14,24 HDPE nature | 14.24 | - | 32 | 28 | 13,4 | 28 | 34,5 | 24514240000 | 1 pcs. | Login | To the product | |||
| GPN 245 QC 15,9 HDPE nature | 15.9 | 5/8 | 34 | 30 | 15,7 | 35 | 43 | 24501590000 | 1 pcs. | Login | To the product | |||
