GPN 400
GPN 400

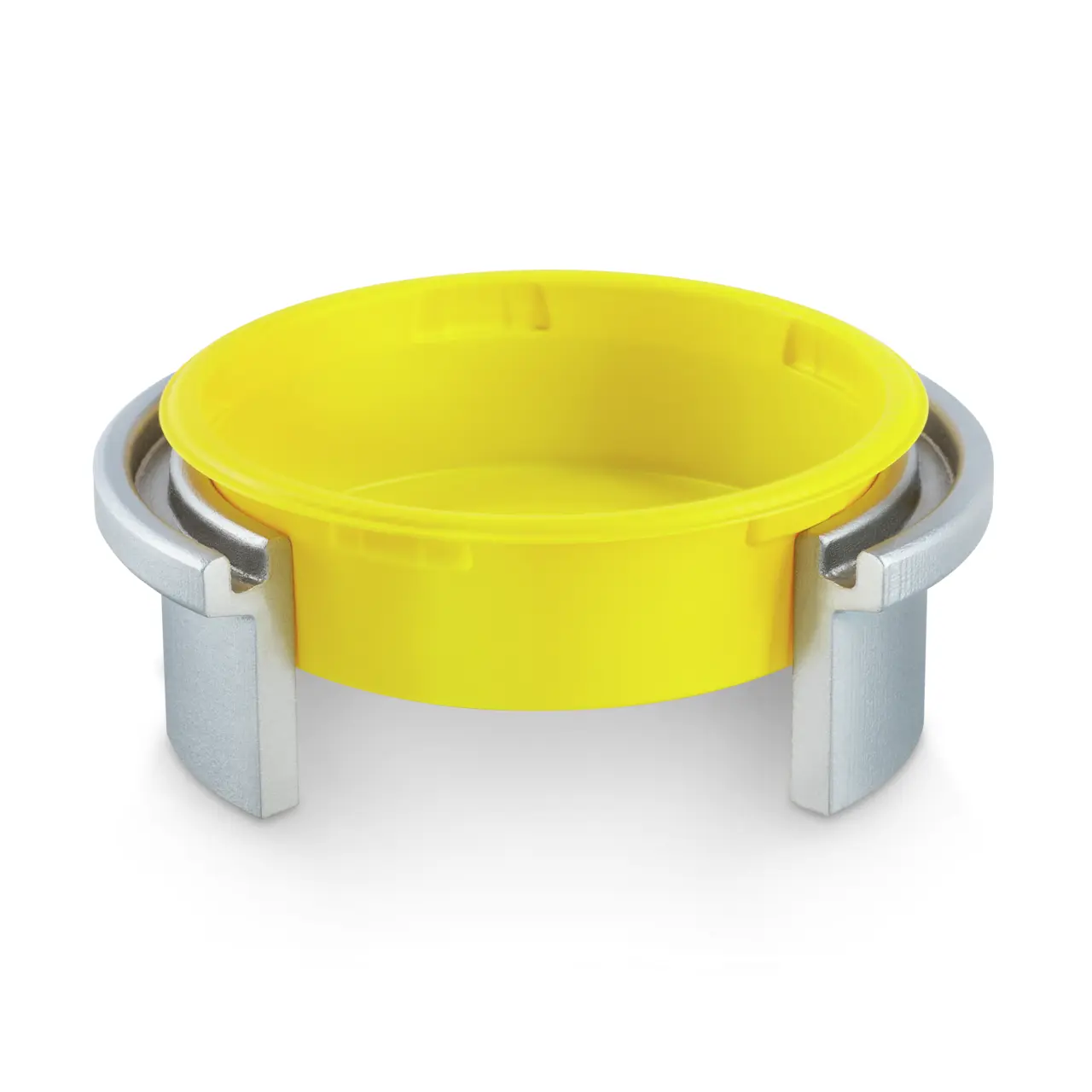

The GPN 400 ECO universal protection can be used as a cap or a plug and protects external threads, bolts and pipes as well as internal thread and bore holes. With the thermoformed universal protection, material use is reduced by up to 70%. The stackable design leads to a reduction in transport and storage volume of up to 75%.


  • ECO universal protection for internal and external protection
Dimensions
Sectional image with dimensions
Information
Standard color
Material
Materials and use

see table

see table

Download PDF

Products Choose from the following articles
Indoor application
Outdoor application
Product A B C (H) (D) (E) (G) Order no.
PU
Price / pc
Item selection
Quantity
GPN 400 C 585 PS sulphur yellow 70,2 56,4 58,6 15 57,9 55,9 22,5 40005850000 1 pcs. Login
To the product
GPN 400 C 598 PS sulphur yellow 70,2 57,7 59,9 15 59,2 57,3 22,5 40005980000 1 pcs. Login
To the product
GPN 400 C 611 PS sulphur yellow 70,2 59 61,3 15 60,3 58,5 22,5 40006110000 1 pcs. Login
To the product
GPN 400 C 624 PS sulphur yellow 82 60,3 62,5 15 61,8 59,8 22,5 40006240000 1 pcs. Login
To the product
GPN 400 C 635 PS sulphur yellow 82 61,4 63,6 15 62,9 60,9 22,5 40006350000 1 pcs. Login
To the product
GPN 400 C 648 PS sulphur yellow 82 62,7 64,9 15 64,2 62,2 22,5 40064800000 1 pcs. Login
To the product
GPN 400 C 660 PS sulphur yellow 82 63,9 66,1 15 65,4 63,3 22,5 40066000000 1 pcs. Login
To the product
GPN 400 C 673 PS sulphur yellow 82 65,4 67,5 15 66,9 64,9 22,5 40067300000 1 pcs. Login
To the product
GPN 400 C 686 PS sulphur yellow 82 66,5 68,7 15 67,9 66 22,5 40006860000 1 pcs. Login
To the product
GPN 400 C 699 PS sulphur yellow 82 67,8 70 15 69,2 67,3 22,5 40006990000 1 pcs. Login
To the product
GPN 400 C 712 PS sulphur yellow 82 69,1 71,3 15 70,5 68,6 22,5 40007120000 1 pcs. Login
To the product
GPN 400 C 725 PS sulphur yellow 82 70,4 72,5 15 71,8 69,9 22,5 40007250000 1 pcs. Login
To the product
GPN 400 C 738 PS sulphur yellow 82 71,7 73,9 15 73,1 71,2 22,5 40007380000 1 pcs. Login
To the product
GPN 400 C 751 PS sulphur yellow 92 73 75,2 15 74,4 72,5 22,5 40007510000 1 pcs. Login
To the product
GPN 400 C 768 PS sulphur yellow 92 74,3 76,9 18 76,1 73,8 25,4 40007680000 1 pcs. Login
To the product
GPN 400 C 785 PS sulphur yellow 92 75,9 78,6 18 77,8 75,5 25,4 40007850000 1 pcs. Login
To the product
GPN 400 C 802 PS sulphur yellow 92 77,7 80,3 18 79,5 77,2 25,4 40008020000 1 pcs. Login
To the product
GPN 400 C 819 PS sulphur yellow 92 79,4 81,9 18 81,2 78,9 25,4 40008190000 1 pcs. Login
To the product
GPN 400 C 836 PS sulphur yellow 101 81,1 83,7 18 82,9 80,6 25,4 40008360000 1 pcs. Login
To the product
GPN 400 C 853 PS sulphur yellow 101 82,8 85,4 18 84,7 82,3 25,4 40008530000 1 pcs. Login
To the product
GPN 400 C 870 PS sulphur yellow 101 84,4 87,1 18 86,3 83,9 25,4 40008700000 1 pcs. Login
To the product
GPN 400 C 887 PS sulphur yellow 101 86,2 88,7 18 88 85,7 25,4 40008870000 1 pcs. Login
To the product
GPN 400 C 902 PS sulphur yellow 101 87,7 90,3 18 89,5 87,2 25,4 40009020000 1 pcs. Login
To the product
GPN 400 C 917 PS sulphur yellow 101 89,1 91,7 18 91 88,6 25,4 40009170000 1 pcs. Login
To the product
GPN 400 C 934 PS sulphur yellow 112 91 93,5 18 92,7 90,3 25,4 40009340000 1 pcs. Login
To the product
GPN 400 C 951 PS sulphur yellow 112 92,7 95,3 18 94,3 91,9 25,4 40009510000 1 pcs. Login
To the product
GPN 400 C 969 PS sulphur yellow 112 94 96,9 21 96,2 93,4 28,4 40009690000 1 pcs. Login
To the product
GPN 400 C 990 PS sulphur yellow 112 96,1 99,1 21 98,3 95,5 28,4 40009900000 1 pcs. Login
To the product
GPN 400 C 1007 PS sulphur yellow 112 97,6 100,8 21 100 97,1 28,4 40010070000 1 pcs. Login
To the product
GPN 400 C 1025 PS sulphur yellow 118 99,6 102,6 21 102,3 99,1 28,4 40010250000 1 pcs. Login
To the product
GPN 400 C 1046 PS sulphur yellow 118 101,6 104,6 21 104,3 101,1 28,4 40010460000 1 pcs. Login
To the product
GPN 400 C 1076 PS sulphur yellow 118 104,6 107,6 21 107,4 104,1 28,4 40010760000 1 pcs. Login
To the product
GPN 400 C 1088 PS sulphur yellow 118 105,8 108,8 21 108,5 105,3 28,4 40010880000 1 pcs. Login
To the product
GPN 400 C 1109 PS sulphur yellow 132 107,9 110,9 21 110,6 107,3 28,4 40011090000 1 pcs. Login
To the product
GPN 400 C 1129 PS sulphur yellow 132 109,7 112,9 21 112,1 109,1 28,4 40011290000 1 pcs. Login
To the product
GPN 400 C 1145 PS sulphur yellow 132 111,4 114,5 21 114,1 110,9 28,4 40011450000 1 pcs. Login
To the product
GPN 400 C 1170 PS sulphur yellow 132 113,7 117,1 24 116,2 113,2 31,3 40011700000 1 pcs. Login
To the product
GPN 400 C 1195 PS sulphur yellow 132 116,1 119,5 24 119 115,6 31,3 40011950000 1 pcs. Login
To the product
GPN 400 C 1219 PS sulphur yellow 132 118,5 121,9 24 121,1 118 31,3 40012190000 1 pcs. Login
To the product
GPN 400 C 1231 PS sulphur yellow 142 119,8 123,2 24 122,2 119,1 31,3 40012310000 1 pcs. Login
To the product
GPN 400 C 1256 PS sulphur yellow 142 122,2 125,6 24 124,8 121,6 31,3 40012560000 1 pcs. Login
To the product
GPN 400 C 1280 PS sulphur yellow 142 124,4 128 24 127,2 123,7 31,3 40012800000 1 pcs. Login
To the product
GPN 400 C 1306 PS sulphur yellow 142 127 130,5 24 130 126,4 31,3 40013060000 1 pcs. Login
To the product
