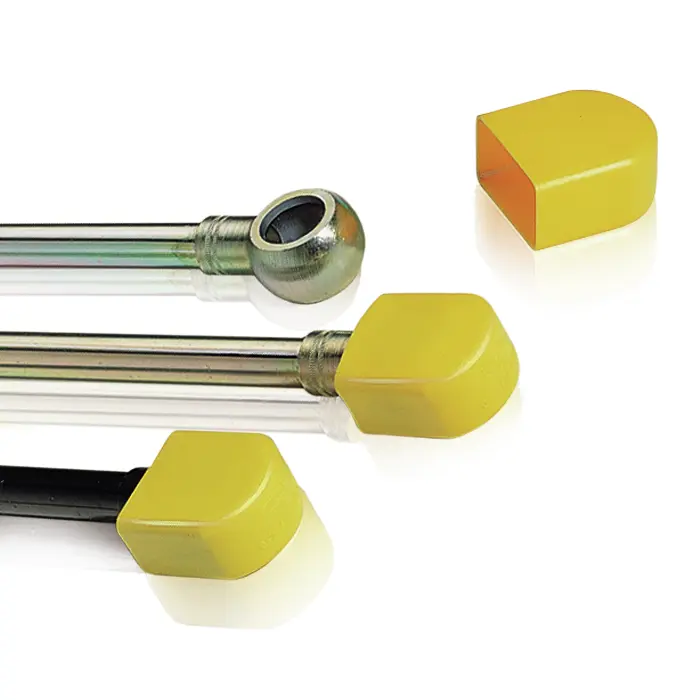

The GPN 695 protective covers are suitable for banjo unions as per DIN 7642 Type B and E as well as for non-standardised banjo unions. The clamping ring is centered in the ring opening of the hollow screw and prevents the ingress of dirt.
|
Applicable for ring connections
|
Dimensions
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product | Pipe outside diameter | D | E | (G) | Order no. |
PU
|
Price / pc
|
Item selection
|
Quantity | ||
| GPN 695 BE 6 HDPE sulphur yellow | 6 | 17 | 9,8 | 19,6 | 69500060000 | 1 pcs. | Login | To the product | |||
| GPN 695 BE 8 HDPE sulphur yellow | 8 | 20 | 11,6 | 23,5 | 69500080000 | 1 pcs. | Login | To the product | |||
| GPN 695 BE 10 HDPE sulphur yellow | 10 | 24 | 13,8 | 27,6 | 69500100000 | 1 pcs. | Login | To the product | |||
| GPN 695 BE 12 HDPE sulphur yellow | 12 | 28 | 15,8 | 31,2 | 69500120000 | 1 pcs. | Login | To the product | |||
| GPN 695 BE 15 HDPE sulphur yellow | 15 | 32,2 | 19,6 | 35,3 | 69500150000 | 1 pcs. | Login | To the product | |||
| GPN 695 BE 18 HDPE sulphur yellow | 18 | 40 | 24,8 | 43 | 69500180000 | 1 pcs. | Login | To the product | |||
