GPN 700
GPN 700

The GPN 700 screw plugs are suitable for many different internal threads and pipe threads as per DIN EN ISO 228-1. Up to medium sizes, the easy-to-grip head for manual assembly also features a slot so that screwdrivers may be used for fitting.


  • Screw plugs for internal protection
Dimensions

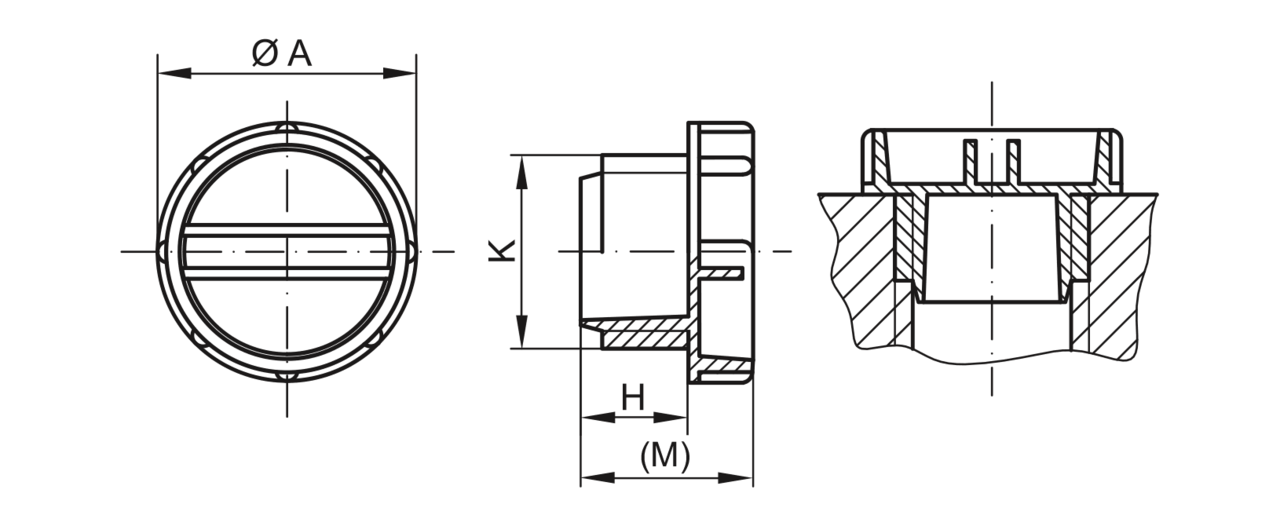

Sectional image with dimensions
Information
Standard color
Material
Materials and use

see table

see table

Download PDF

Products Choose from the following articles
Applicable for
Dimensions
Product Thread K A H (M) Order no.
PU
Price / pc
Item selection
Quantity
GPN 700 1 1/16 - 12 UN HDPE recycling blue 1 1/16 - 12 UN 32 12 20 7003193RB22 1 pcs. Login
To the product
GPN 700 1 1/16 - 12 UN HDPE sulphur yellow 1 1/16 - 12 UN 32 12 20 70031930000 1 pcs. Login
To the product
GPN 700 1/2 - 20 UNF HDPE recycling blue 1/2 - 20 UNF 16 9 14 7003191RB22 1 pcs. Login
To the product
GPN 700 1/2 - 20 UNF HDPE sulphur yellow 1/2 - 20 UNF 16 9 14 70031910000 1 pcs. Login
To the product
GPN 700 1/4 - 18 NPTF HDPE recycling blue 1/4 - 18 NPTF 19 9 15 7000591RB22 1 pcs. Login
To the product
GPN 700 1/4 - 18 NPTF HDPE sulphur yellow 1/4 - 18 NPTF 19 9 15 70005910000 1 pcs. Login
To the product
GPN 700 1/4 - 28 UNF HDPE recycling blue 1/4 - 28 UNF 12 7 12 7007229RB22 1 pcs. Login
To the product
GPN 700 1/4 - 28 UNF HDPE sulphur yellow 1/4 - 28 UNF 12 7 12 70072290000 1 pcs. Login
To the product
GPN 700 1 5/8 - 12 UN HDPE recycling blue 1 5/8 - 12 UN 52 15 25 7007241RB22 1 pcs. Login
To the product
GPN 700 1 5/8 - 12 UN HDPE sulphur yellow 1 5/8 - 12 UN 52 15 25 70072410000 1 pcs. Login
To the product
GPN 700 1 5/16 - 12 UN HDPE recycling blue 1 5/16 - 12 UN 42 13 23 7005951RB22 1 pcs. Login
To the product
GPN 700 1 5/16 - 12 UN HDPE sulphur yellow 1 5/16 - 12 UN 42 13 23 70059510000 1 pcs. Login
To the product
GPN 700 1 7/8 - 12 UN HDPE recycling blue 1 7/8 - 12 UN 57 15 25 7007245RB22 1 pcs. Login
To the product
GPN 700 1 7/8 - 12 UN HDPE sulphur yellow 1 7/8 - 12 UN 57 15 25 70072450000 1 pcs. Login
To the product
GPN 700 1 - 14 UNS HDPE recycling blue 1 - 14 UNS 32 10 18 7007233RB22 1 pcs. Login
To the product
GPN 700 1 - 14 UNS HDPE sulphur yellow 1 - 14 UNS 32 10 18 70072330000 1 pcs. Login
To the product
GPN 700 3/4 - 16 UNF HDPE recycling blue 3/4 - 16 UNF 26 12 18 7003192RB22 1 pcs. Login
To the product
GPN 700 3/4 - 16 UNF HDPE sulphur yellow 3/4 - 16 UNF 26 12 18 70031920000 1 pcs. Login
To the product
GPN 700 3/8 - 24 UNF HDPE recycling blue 3/8 - 24 UNF 14 9 14 7003194RB22 1 pcs. Login
To the product
GPN 700 3/8 - 24 UNF HDPE sulphur yellow 3/8 - 24 UNF 14 9 14 70031940000 1 pcs. Login
To the product
GPN 700 5/8 - 18 UNF HDPE recycling blue 5/8 - 18 UNF 21 10 16 7005084RB22 1 pcs. Login
To the product
GPN 700 5/8 - 18 UNF HDPE sulphur yellow 5/8 - 18 UNF 21 10 16 70050840000 1 pcs. Login
To the product
GPN 700 7/8 - 14 UNF HDPE recycling blue 7/8 - 14 UNF 28 12 18 7000496RB22 1 pcs. Login
To the product
GPN 700 7/8 - 14 UNF HDPE sulphur yellow 7/8 - 14 UNF 28 12 18 70004960000 1 pcs. Login
To the product
GPN 700 7/16 - 20 UNF HDPE recycling blue 7/16 - 20 UNF 16 9 14 7000497RB22 1 pcs. Login
To the product
GPN 700 7/16 - 20 UNF HDPE sulphur yellow 7/16 - 20 UNF 16 9 14 70004970000 1 pcs. Login
To the product
GPN 700 9/16 - 18 UNF HDPE recycling blue 9/16 - 18 UNF 19 9 14 7000498RB22 1 pcs. Login
To the product
GPN 700 9/16 - 18 UNF HDPE sulphur yellow 9/16 - 18 UNF 19 9 14 70004980000 1 pcs. Login
To the product
GPN 700 G 1/2 HDPE recycling blue G 1/2 26 12 18 7000395RB22 1 pcs. Login
To the product
GPN 700 G 1/2 HDPE sulphur yellow G 1/2 26 12 18 70003950000 1 pcs. Login
To the product
GPN 700 G 1/4 HDPE recycling blue G 1/4 19 9 14 7000400RB22 1 pcs. Login
To the product
GPN 700 G 1/4 HDPE sulphur yellow G 1/4 19 9 14 70004000000 1 pcs. Login
To the product
GPN 700 G 1/8 HDPE recycling blue G 1/8 14 9 14 7000371RB22 1 pcs. Login
To the product
GPN 700 G 1/8 HDPE sulphur yellow G 1/8 14 9 14 70003710000 1 pcs. Login
To the product
GPN 700 G 3/4 HDPE recycling blue G 3/4 31,5 12 20 7003371RB22 1 pcs. Login
To the product
GPN 700 G 3/4 HDPE sulphur yellow G 3/4 31,5 12 20 70033710000 1 pcs. Login
To the product
GPN 700 G 3/8 HDPE recycling blue G 3/8 21 10 16 7000386RB22 1 pcs. Login
To the product
GPN 700 G 3/8 HDPE sulphur yellow G 3/8 21 10 16 70003860000 1 pcs. Login
To the product
GPN 700 G 5/8 HDPE recycling blue G 5/8 28 12 18 7000401RB22 1 pcs. Login
To the product
GPN 700 G 5/8 HDPE sulphur yellow G 5/8 28 12 18 70004010000 1 pcs. Login
To the product
GPN 700 M 6 HDPE recycling blue M 6 12 7 12 7000006RB22 1 pcs. Login
To the product
GPN 700 M 6 HDPE sulphur yellow M 6 12 7 12 70000060000 1 pcs. Login
To the product
GPN 700 M 6 X 0,75 HDPE recycling blue M 6 x 0.75 12 7 12 7006075RB22 1 pcs. Login
To the product
GPN 700 M 6 X 0,75 HDPE sulphur yellow M 6 x 0.75 12 7 12 70060750000 1 pcs. Login
To the product
GPN 700 M 8 HDPE recycling blue M 8 12 7 12 7000008RB22 1 pcs. Login
To the product
GPN 700 M 8 HDPE sulphur yellow M 8 12 7 12 70000080000 1 pcs. Login
To the product
GPN 700 M 8 X 1 HDPE recycling blue M 8 x 1 12 7 12 7000810RB22 1 pcs. Login
To the product
GPN 700 M 8 X 1 HDPE sulphur yellow M 8 x 1 12 7 12 70008100000 1 pcs. Login
To the product
GPN 700 M 10 HDPE recycling blue M 10 14 9 14 7000010RB22 1 pcs. Login
To the product
GPN 700 M 10 HDPE sulphur yellow M 10 14 9 14 70000100000 1 pcs. Login
To the product
GPN 700 M 10 X 1 HDPE recycling blue M 10 x 1 14 9 14 7001010RB22 1 pcs. Login
To the product
GPN 700 M 10 X 1 HDPE sulphur yellow M 10 x 1 14 9 14 70010100000 1 pcs. Login
To the product
GPN 700 M 12 HDPE recycling blue M 12 16 9 14 7000012RB22 1 pcs. Login
To the product
GPN 700 M 12 HDPE sulphur yellow M 12 16 9 14 70000120000 1 pcs. Login
To the product
GPN 700 M 12 X 1 HDPE recycling blue M 12 x 1 16 9 14 7001210RB22 1 pcs. Login
To the product
GPN 700 M 12 X 1 HDPE sulphur yellow M 12 x 1 16 9 14 70012100000 1 pcs. Login
To the product
GPN 700 M 12 X 1,5 HDPE recycling blue M 12 x 1,5 16 9 14 7001215RB22 1 pcs. Login
To the product
GPN 700 M 12 X 1,5 HDPE sulphur yellow M 12 x 1,5 16 9 14 70012150000 1 pcs. Login
To the product
GPN 700 M 14 HDPE recycling blue M 14 19 9 14 7000014RB22 1 pcs. Login
To the product
GPN 700 M 14 HDPE sulphur yellow M 14 19 9 14 70000140000 1 pcs. Login
To the product
GPN 700 M 14 X 1 HDPE recycling blue M 14 x 1 19 9 14 7001410RB22 1 pcs. Login
To the product
GPN 700 M 14 X 1 HDPE sulphur yellow M 14 x 1 19 9 14 70014100000 1 pcs. Login
To the product
GPN 700 M 14 X 1,5 HDPE recycling blue M 14 x 1,5 19 9 14 7001415RB22 1 pcs. Login
To the product
GPN 700 M 14 X 1,5 HDPE sulphur yellow M 14 x 1,5 19 9 14 70014150000 1 pcs. Login
To the product
GPN 700 M 16 HDPE recycling blue M 16 21 10 16 7000016RB22 1 pcs. Login
To the product
GPN 700 M 16 HDPE sulphur yellow M 16 21 10 16 70000160000 1 pcs. Login
To the product
GPN 700 M 16 X 1,5 HDPE recycling blue M 16 x 1,5 21 10 16 7001615RB22 1 pcs. Login
To the product
GPN 700 M 16 X 1,5 HDPE sulphur yellow M 16 x 1,5 21 10 16 70016150000 1 pcs. Login
To the product
GPN 700 M 18 HDPE recycling blue M 18 24 10 16 7000018RB22 1 pcs. Login
To the product
GPN 700 M 18 HDPE sulphur yellow M 18 24 10 16 70000180000 1 pcs. Login
To the product
GPN 700 M 18 X 1 HDPE recycling blue M 18 x 1 24 10 16 7001810RB22 1 pcs. Login
To the product
GPN 700 M 18 X 1 HDPE sulphur yellow M 18 x 1 24 10 16 70018100000 1 pcs. Login
To the product
GPN 700 M 18 X 1,5 HDPE recycling blue M 18 x 1,5 24 10 16 7001815RB22 1 pcs. Login
To the product
GPN 700 M 18 X 1,5 HDPE sulphur yellow M 18 x 1,5 24 10 16 70018150000 1 pcs. Login
To the product
GPN 700 M 20 HDPE recycling blue M 20 26 12 18 7000020RB22 1 pcs. Login
To the product
GPN 700 M 20 HDPE sulphur yellow M 20 26 12 18 70000200000 1 pcs. Login
To the product
GPN 700 M 20 X 1,5 HDPE recycling blue M 20 x 1,5 26 12 18 7002015RB22 1 pcs. Login
To the product
GPN 700 M 20 X 1,5 HDPE sulphur yellow M 20 x 1,5 26 12 18 70020150000 1 pcs. Login
To the product
GPN 700 M 22 HDPE recycling blue M 22 28 12 18 7000022RB22 1 pcs. Login
To the product
GPN 700 M 22 HDPE sulphur yellow M 22 28 12 18 70000220000 1 pcs. Login
To the product
GPN 700 M 22 X 1,5 HDPE recycling blue M 22 x 1,5 28 12 18 7002215RB22 1 pcs. Login
To the product
GPN 700 M 22 X 1,5 HDPE sulphur yellow M 22 x 1,5 28 12 18 70022150000 1 pcs. Login
To the product
GPN 700 M 24 HDPE recycling blue M 24 31,5 10 18 7000024RB22 1 pcs. Login
To the product
GPN 700 M 24 HDPE sulphur yellow M 24 31,5 10 18 70000240000 1 pcs. Login
To the product
GPN 700 M 24 X 1,5 HDPE recycling blue M 24 x 1,5 31,5 10 18 7002415RB22 1 pcs. Login
To the product
GPN 700 M 24 X 1,5 HDPE sulphur yellow M 24 x 1,5 31,5 10 18 70024150000 1 pcs. Login
To the product
GPN 700 M 24 X 2 HDPE recycling blue M 24 x 2 31,5 10 18 7002420RB22 1 pcs. Login
To the product
GPN 700 M 24 X 2 HDPE sulphur yellow M 24 x 2 31,5 10 18 70024200000 1 pcs. Login
To the product
GPN 700 M 26 X 1,5 HDPE recycling blue M 26 x 1,5 31,5 12 20 7002615RB22 1 pcs. Login
To the product
GPN 700 M 26 X 1,5 HDPE sulphur yellow M 26 x 1,5 31,5 12 20 70026150000 1 pcs. Login
To the product
GPN 700 M 27 X 2 HDPE recycling blue M 27 x 2 32 12 20 7002720RB22 1 pcs. Login
To the product
GPN 700 M 27 X 2 HDPE sulphur yellow M 27 x 2 32 12 20 70027200000 1 pcs. Login
To the product
GPN 700 M 30 HDPE recycling blue M 30 35,4 17,7 26 7000030RB22 1 pcs. Login
To the product
GPN 700 M 30 HDPE sulphur yellow M 30 35,4 17,7 26 70000300000 1 pcs. Login
To the product
GPN 700 M 30 X 1,5 HDPE recycling blue M 30 x 1,5 36 12 20 7003015RB22 1 pcs. Login
To the product
GPN 700 M 30 X 1,5 HDPE sulphur yellow M 30 x 1,5 36 12 20 70030150000 1 pcs. Login
To the product
GPN 700 M 30 X 2 HDPE recycling blue M 30 x 2 36 12 20 7003020RB22 1 pcs. Login
To the product
GPN 700 M 30 X 2 HDPE sulphur yellow M 30 x 2 36 12 20 70030200000 1 pcs. Login
To the product
GPN 700 M 33 X 2 HDPE recycling blue M 33 x 2 39 13 23 7003320RB22 1 pcs. Login
To the product
GPN 700 M 33 X 2 HDPE sulphur yellow M 33 x 2 39 13 23 70033200000 1 pcs. Login
To the product
GPN 700 M 36 HDPE recycling blue M 36 43,6 18 28 7000036RB22 1 pcs. Login
To the product
GPN 700 M 36 HDPE sulphur yellow M 36 43,6 18 28 70000360000 1 pcs. Login
To the product
GPN 700 M 36 X 1,5 HDPE recycling blue M 36 x 1,5 44 13 23 7003615RB22 1 pcs. Login
To the product
GPN 700 M 36 X 1,5 HDPE sulphur yellow M 36 x 1,5 44 13 23 70036150000 1 pcs. Login
To the product
GPN 700 M 36 X 2 recycling blue M 36 x 2 44 13 23 7003620RB22 1 pcs. Login
To the product
GPN 700 M 36 X 2 HDPE sulphur yellow M 36 x 2 44 13 23 70036200000 1 pcs. Login
To the product
GPN 700 M 42 HDPE recycling blue M 42 51,7 17,7 27,8 7000042RB22 1 pcs. Login
To the product
GPN 700 M 42 HDPE sulphur yellow M 42 51,7 17,7 27,8 70000420000 1 pcs. Login
To the product
GPN 700 M 42 X 1,5 HDPE recycling blue M 42 x 1,5 51 15 25 7004215RB22 1 pcs. Login
To the product
GPN 700 M 42 X 1,5 HDPE sulphur yellow M 42 x 1,5 51 15 25 70042150000 1 pcs. Login
To the product
GPN 700 M 42 X 2 HDPE recycling blue M 42 x 2 52 15 25 7004220RB22 1 pcs. Login
To the product
GPN 700 M 42 X 2 HDPE sulphur yellow M 42 x 2 52 15 25 70042200000 1 pcs. Login
To the product
GPN 700 M 45 X 1,5 HDPE recycling blue M 45 x 1,5 55 15 25 7004515RB22 1 pcs. Login
To the product
GPN 700 M 45 X 1,5 HDPE sulphur yellow M 45 x 1,5 55 15 25 70045150000 1 pcs. Login
To the product
GPN 700 M 45 X 2 HDPE recycling blue M 45 x 2 55 15 25 7004520RB22 1 pcs. Login
To the product
GPN 700 M 45 X 2 HDPE sulphur yellow M 45 x 2 55 15 25 70045200000 1 pcs. Login
To the product
GPN 700 M 52 X 1,5 HDPE recycling blue M 52 x 1,5 60 15 25 7005215RB22 1 pcs. Login
To the product
GPN 700 M 52 X 1,5 HDPE sulphur yellow M 52 x 1,5 60 15 25 70052150000 1 pcs. Login
To the product
GPN 700 M 52 X 2 HDPE recycling blue M 52 x 2 60 15 25 7005220RB22 1 pcs. Login
To the product
GPN 700 M 52 X 2 HDPE sulphur yellow M 52 x 2 60 15 25 70052200000 1 pcs. Login
To the product
GPN 700 M 20 x 2 PE-HD, schwefelgelb Sonderprogramm - - - - 70020200000 1 pcs. Login
