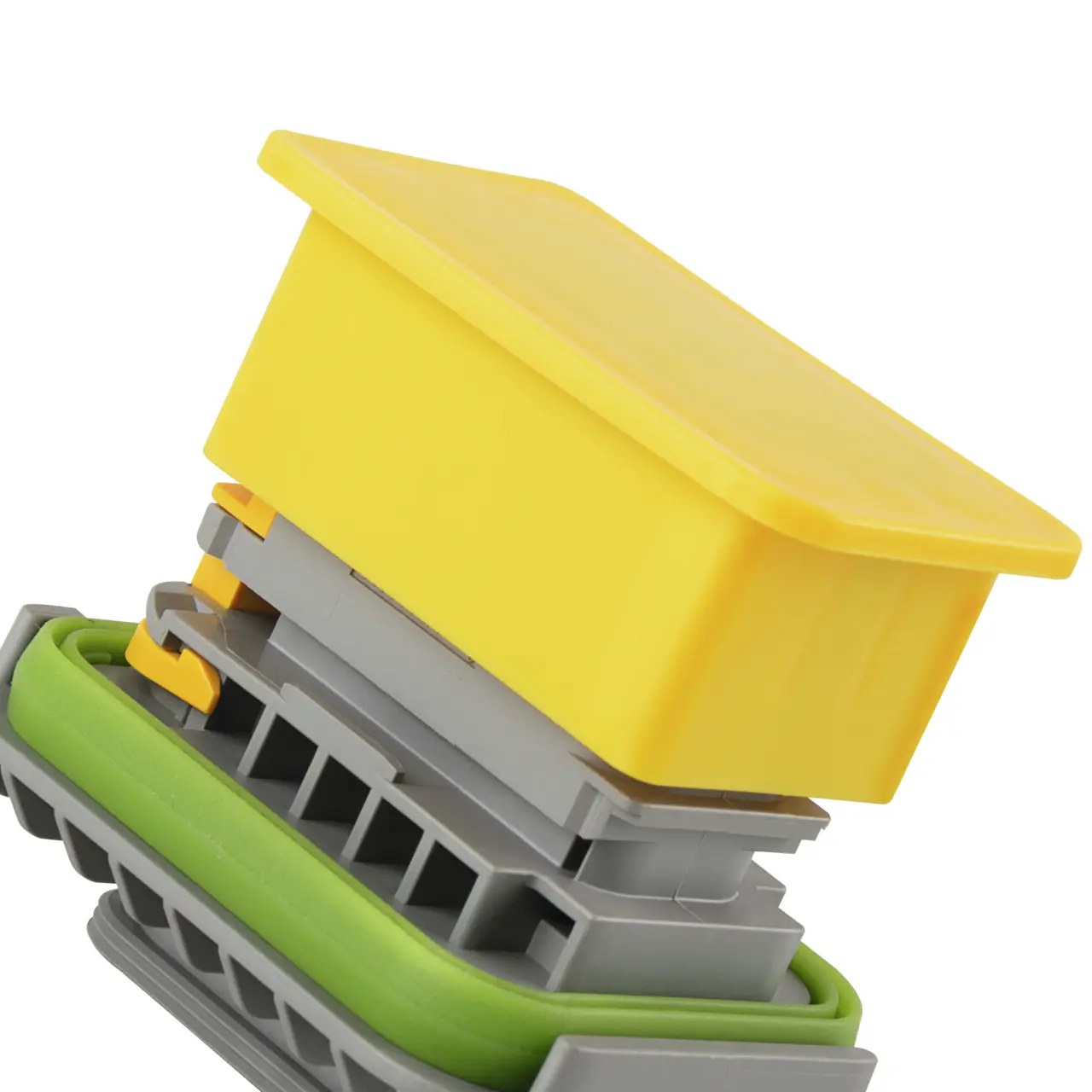

The GPN 365 HDSCS protection is suitable for the protection of the Heavy Duty Sealed Connector Series and protects pin housing and contact pins with numbers of poles between 2 and 18. Internal bars clamp in the inner contours and the connector is protected externally. The material is temporarily heat-resistant up to 150° C.
see table
see table
|
Dimensions
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product | A | F | G | H | (M) | Order no. |
Piece Price
|
Item selection
|
Quantity | ||
| GPN 365 SC 1810 TPE sulphur yellow | 33,7 | - | 16,3 | 6 | 18,3 | 36518100000 | Login | To the product | |||
| GPN 365 SC 1816 TPE sulphur yellow | 33,7 | - | 16,3 | 6 | 18,3 | 36518160000 | Login | To the product | |||
| GPN 365 SC 2316 PCR-TPE gelb | 38,7 | - | 16,3 | 6 | 18,3 | 36523160085 | Login | To the product | |||
| GPN 365 SC 2316 TPE sulphur yellow | 38,7 | - | 16,3 | 6 | 18,3 | 36523160000 | Login | To the product | |||
| GPN 365 SC 3116 TPE sulphur yellow | 46,7 | - | 16,3 | 6 | 18,3 | 36531160000 | Login | To the product | |||
| GPN 365 SC 4316 TPE sulphur yellow | 58,9 | - | 16,3 | 6 | 18,3 | 36543160000 | Login | To the product | |||
